Top Mount GD

Notes

This is the shape of a turbo upgrade done in the right order. The turbo itself is the easy decision. What takes the time is everything hanging off it: the manifold geometry, where the oil feed and return go, how the charge air gets across the engine without cooking, and whether the fuel system can actually keep up.

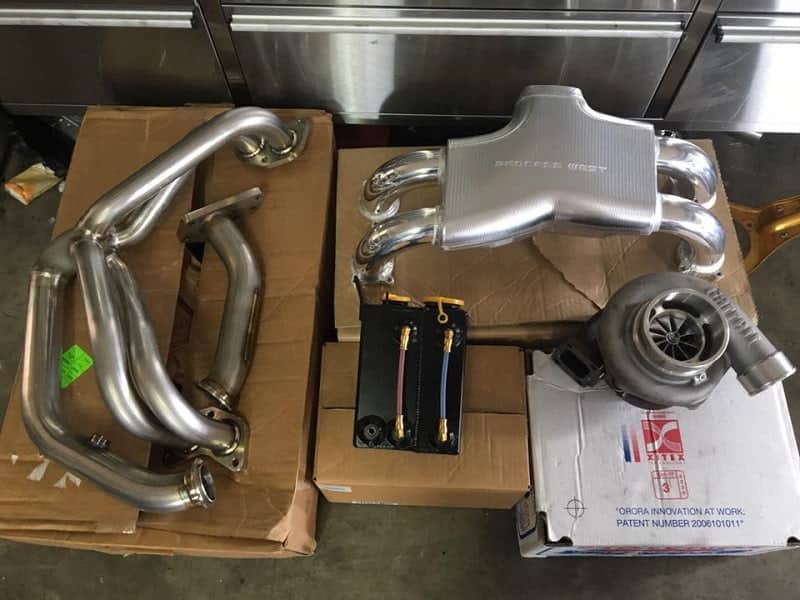

The parts shot shows how a job like this arrives at the workshop: manifold, turbo, intercooler and fuel rails on the bench before anything comes apart. Nothing gets fitted until the whole package is in front of them.

Work completed

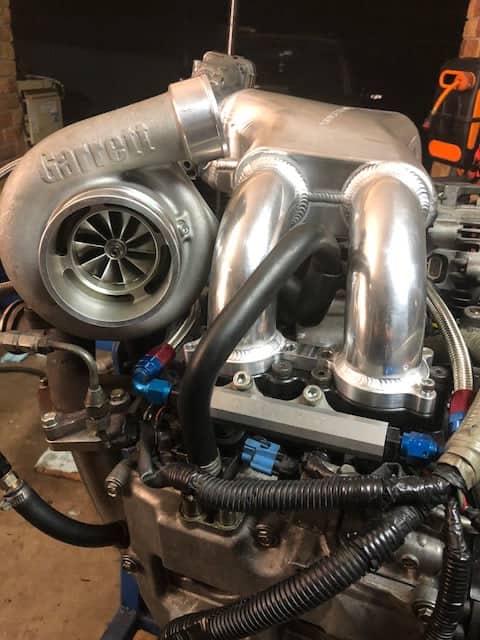

• Garrett turbo on a tubular top mount manifold
• Intercooler and hard pipe routing rebuilt around the new turbo
• Braided oil feed and return lines
• Oil cooler and front-mounted cooling hardware
• Fuel rails and feed lines

Parts

• Garrett turbocharger
• Tubular top mount manifold
• Process West intercooler

Workshop photography · SPR Performance.
